Steele Pug Mills
— Better continuous intensive mixing and de-airing
Continuous intensive mixing of liquids and/or sludges with dry solids, using mixing knives instead of paddles — for better mixing and de-airing of sticky materials, with minimal material adherence.
Steele Pug Mills deliver the high-torque continuous mixing you need, with minimal maintenance requirements and fast replacement of wearing parts for reduced downtime and lower operating costs. Our pug mills offer rugged construction, including frames cast with our heavy ductile iron, heavy-duty gears and bearings, large diameter shafts and pneumatic clutches.
We build pug mills in four sizes to meet your production needs:
| Pug mill/estimated max output | Cubic feet | Cubic meters |
| The new 10A Pug Mixer | 125 | 3.6 |
| 25A Pug Mill | 500 | 14.2 |
| 200F Pug Mill | 960 | 27.2 |

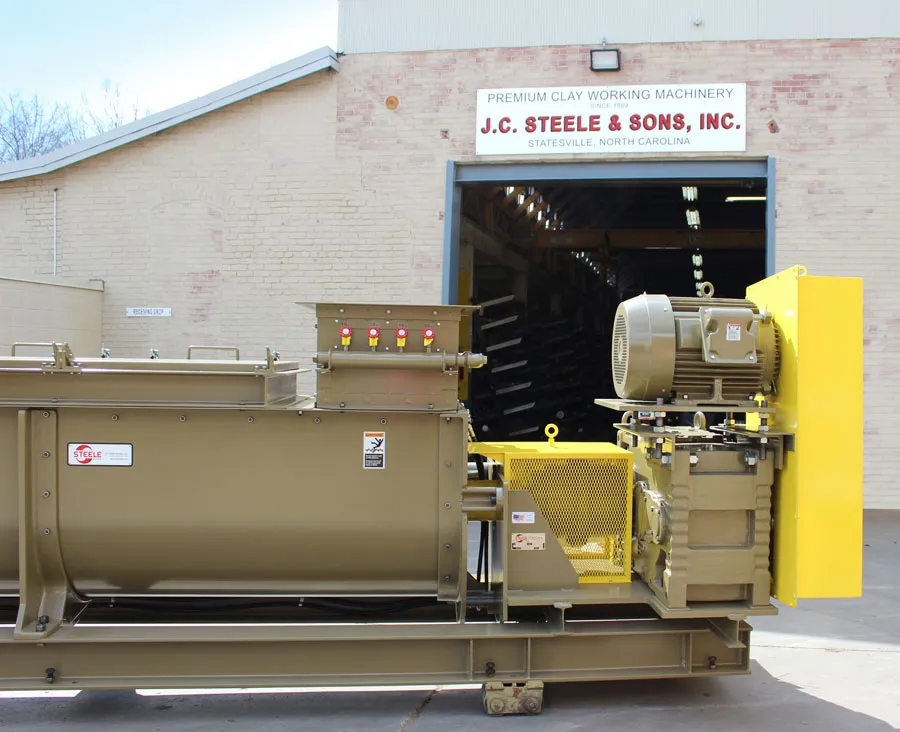

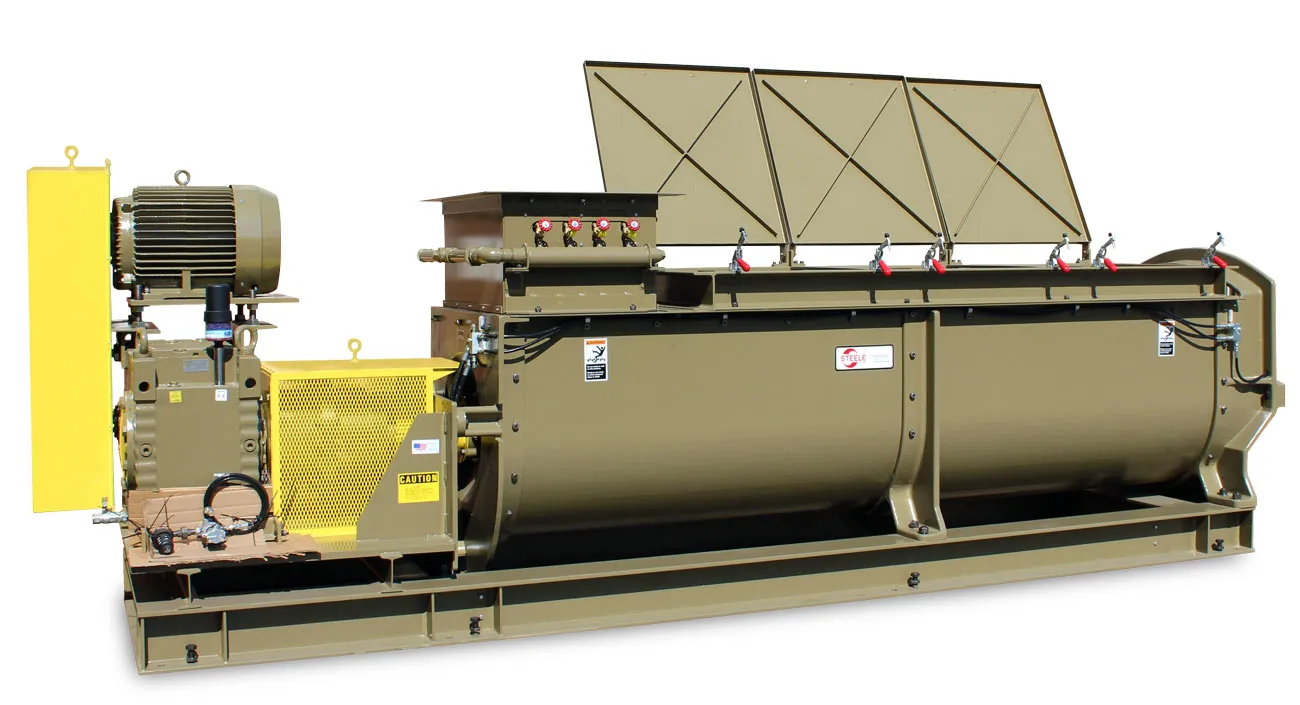

| 300G Jumbo Pug Mill | 2000 | 56.7 |
The new 10A Pug Mixer — High-intensity continuous mixing for testing or small production lines
High-intensity continuous mixing for reliable low-tonnage and small footprint requirements. The 10APM eliminates stoppages caused by larger mixers that over-run the extruder.
Accelerate or retard material flow

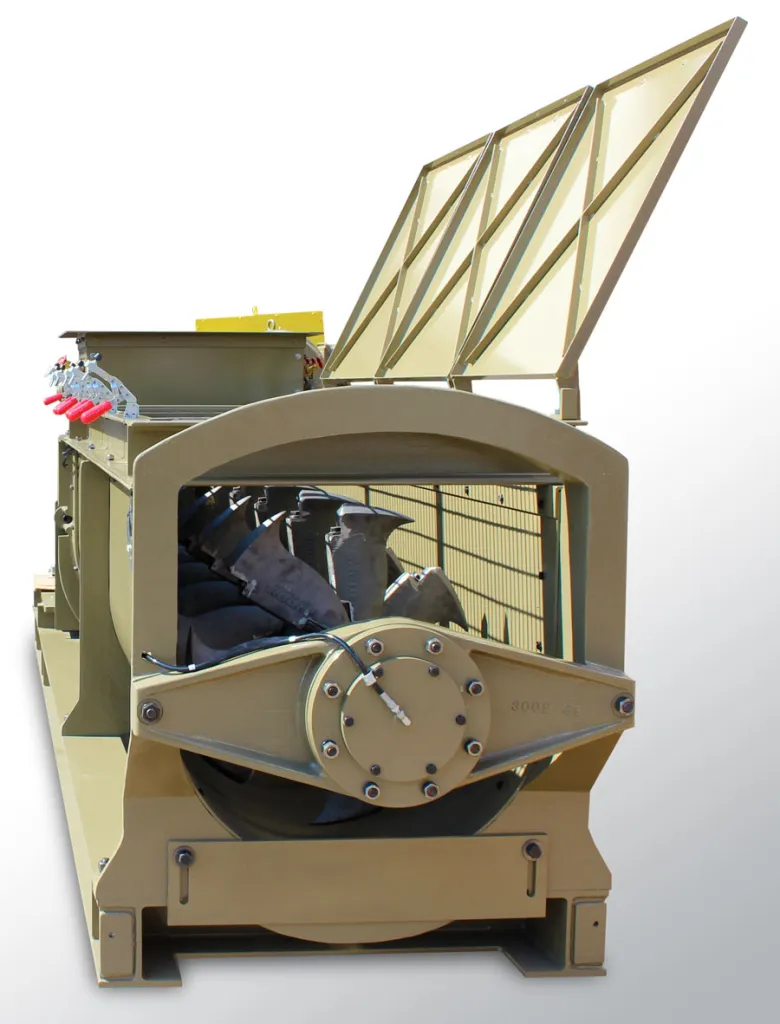

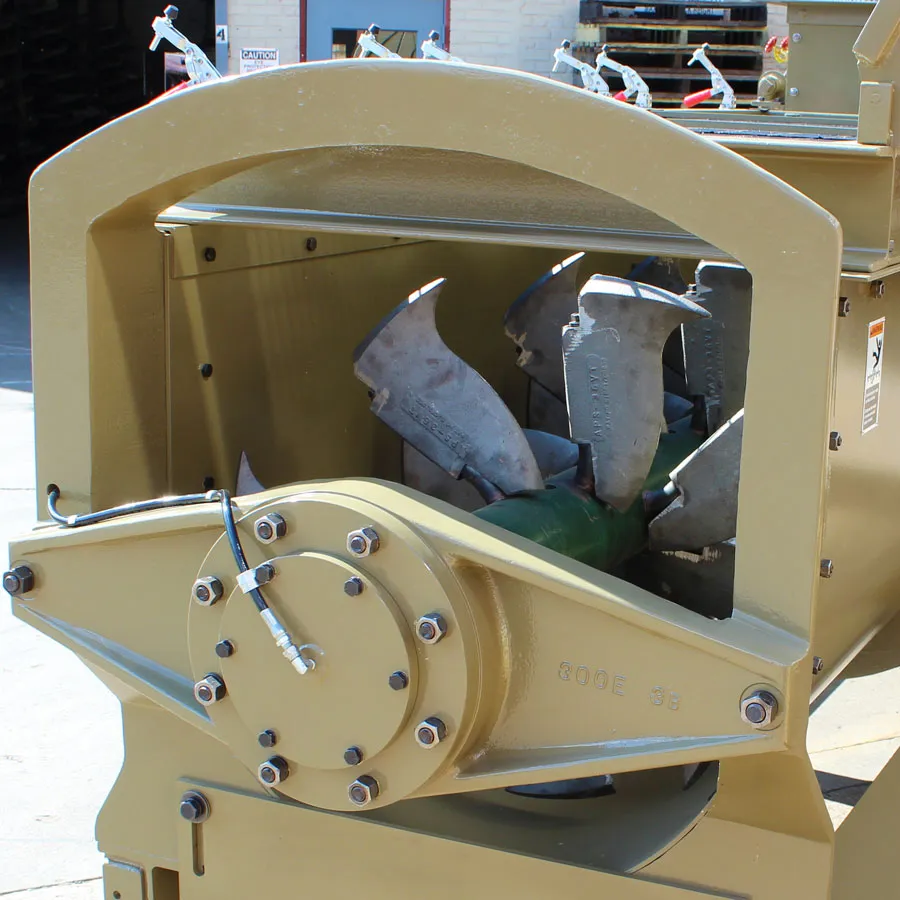

Steele pug mills use replaceable pug knife blades cast with our high chrome iron alloy. These adjustable-pitch knives fit on the shaft in overlapping spirals to move material to the discharge end of the tub (you can set the knife pitch to accelerate or retard material flow).
Our pug mills use knives instead of paddles, for better mixing and de-airing of liquids and/or sludges with dry solids.
Materials processing
- Clays
- Shales
- Wastewater
- Steel mill and metallurgical by-products
- Industrial minerals
Input material
- Less than 1” or 25mm
Output size
- Varies with material and machine installation
Throughput
- from 3 to 150 MTPH
Industry Applications
- Mixing and pugging for brick, block and tile production
- Mixing and pugging for aggregates and cement
- Mixing wastewater, steel mill and metallurgical by-products, and industrial minerals
Steele Mixing Machines
Steele Pug Mills
Better continuous intensive mixing and de-airing
Steele Double Shaft Mixers
For intensive mixing of dissimilar materials
Machinery, Engineering and Service
Steele Pug Mills deliver continuous intensive mixing with the reliability and lower operating costs you want. To assess their suitability for your application, talk to your regional Steele sales or service representative, or call +1 704.872.3681.
