Steele Disintegrators
— Consistent sizing for bulk raw materials
Ideal for wet clays, shales, filter cakes, limestone and other medium rocks that require intermediate size reduction between primary and final crushing. Steele disintegrators eliminate the need for other sizing machines when you don’t need fine grinding.
Steele disintegrators process wet, sticky clays in any feedable lump size, reducing material to small chips measuring 6mm or below. They also process shales, soft limestone, fireclay and other dry materials, producing an output that is 60% screenable through No. 8 mesh.
Fine grinding for smooth roll crushing

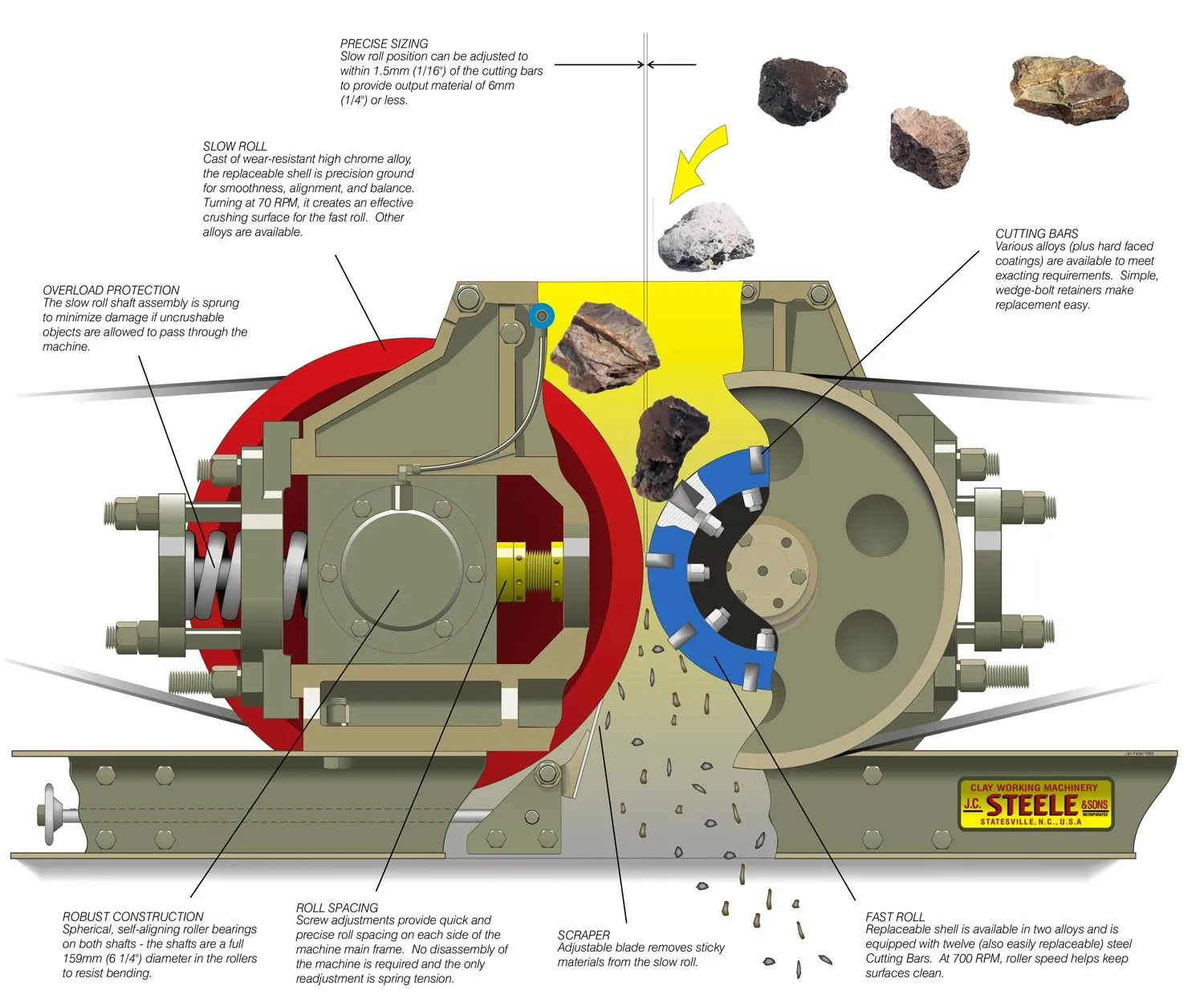

Steele disintegrators prepare materials for smooth roll crushing. They can also re-circulate flat cakes or plates from a smooth roll crusher. We make two sizes:

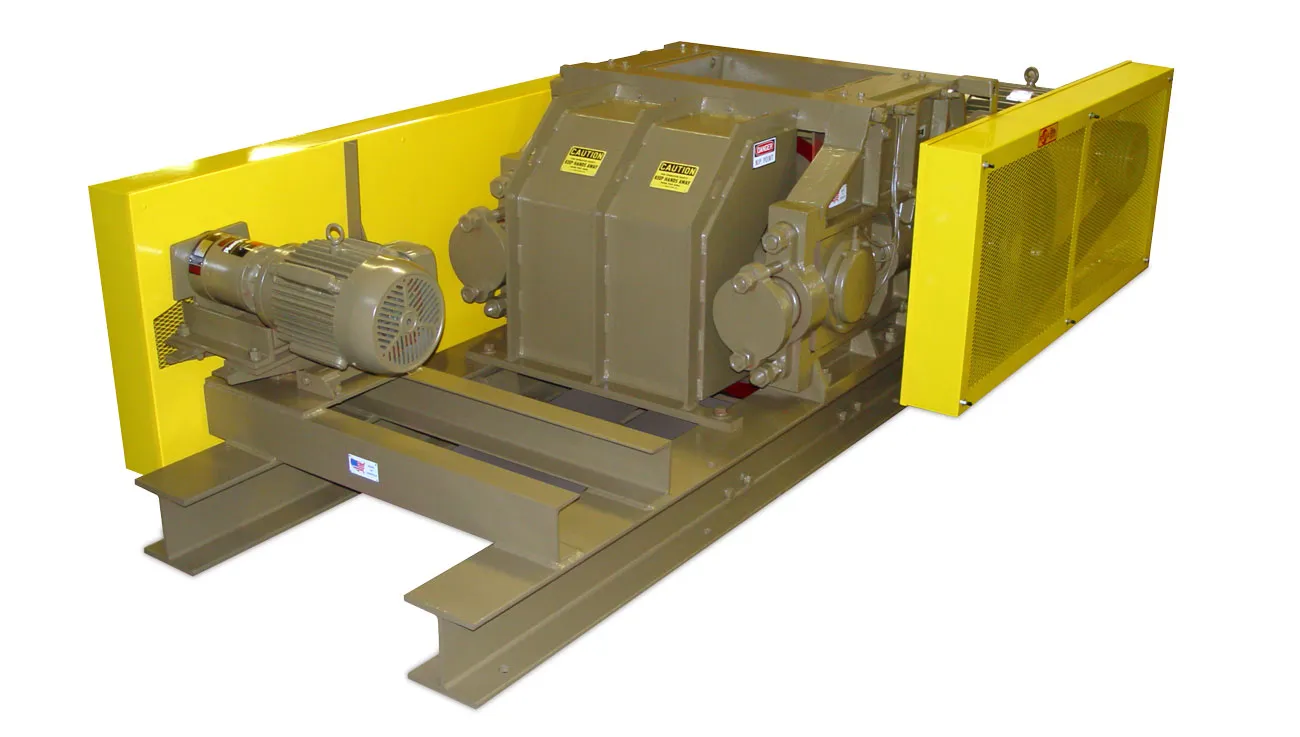

- Model 6B-18 — 18-inch (457mm) wide disintegrator
- Model 6B-24 — 24-inch (610mm) wide disintegrators for larger materials sizes and higher output
Like all Steele machinery, our disintegrators come with our comprehensive raw materials database and the experience supporting global customers with service and parts.
Materials processing
- Wet, sticky clays
- Shales
- Soft limestone
- Fireclays
- Other dry materials
Input material
- 4-6″ (100 – 150 mm)
Output size
- 1/2″ (adjustable) less than 12mm and able to go smaller with a reduced throughput
Throughput
- 40-100 tons per hour, depending on machine size, horsepower and required reduction ratio.
Industry Applications
- Intermediate grinding for brick, block and tile
- Cement, paving, mining, adsorbents and industrial minerals

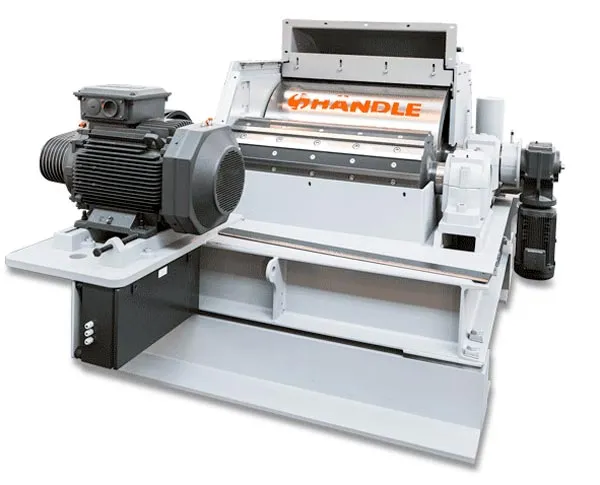

Händle Disintegrators
Händle, our German partner, makes complementary, world-class disintegrators. Learn more about Händle Disintegrators >
We can help source Händle products for specific markets.
Talk to your regional Steele sales or service representative or contact us.
