Steele Double Rotor Hammermill
— High-capacity grinding without the reliability issues
A high-capacity grinding mill engineered to deliver consistent, reliable size reduction for materials with higher moisture levels. The Double Rotor Hammermill prepares clays and shales without material buildup and clogging, dust plumes and particle discharge.
Our dual rotor design minimizes dead space that allows material buildup and clogging, particularly when running materials with high moisture content. The machine’s mass and precision engineering protect bearings from dust, dirt and vibration.

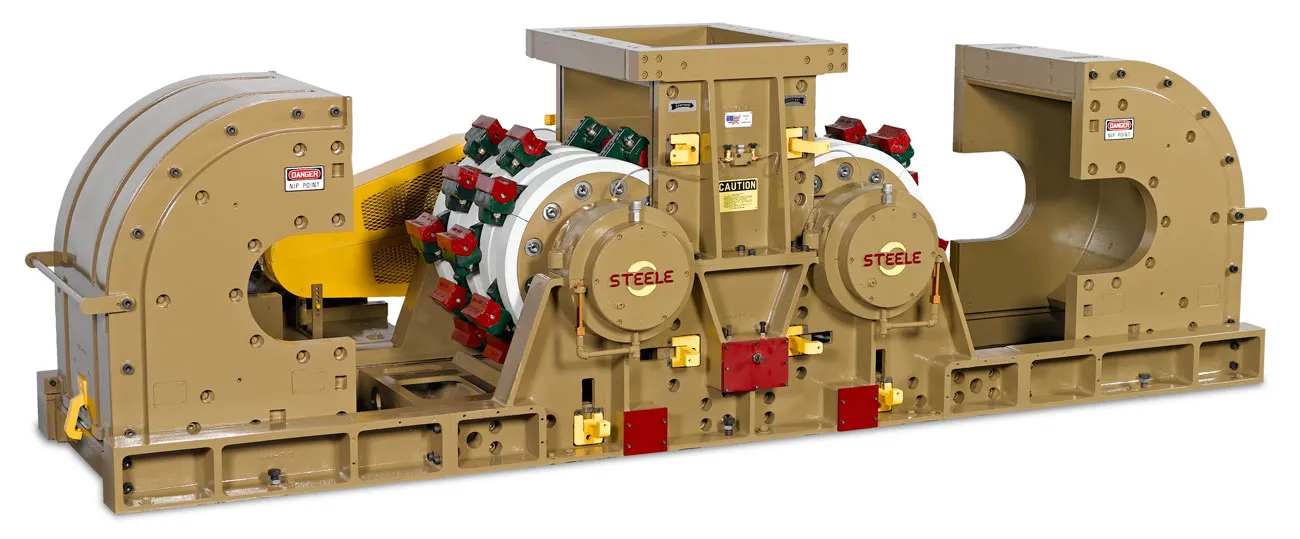

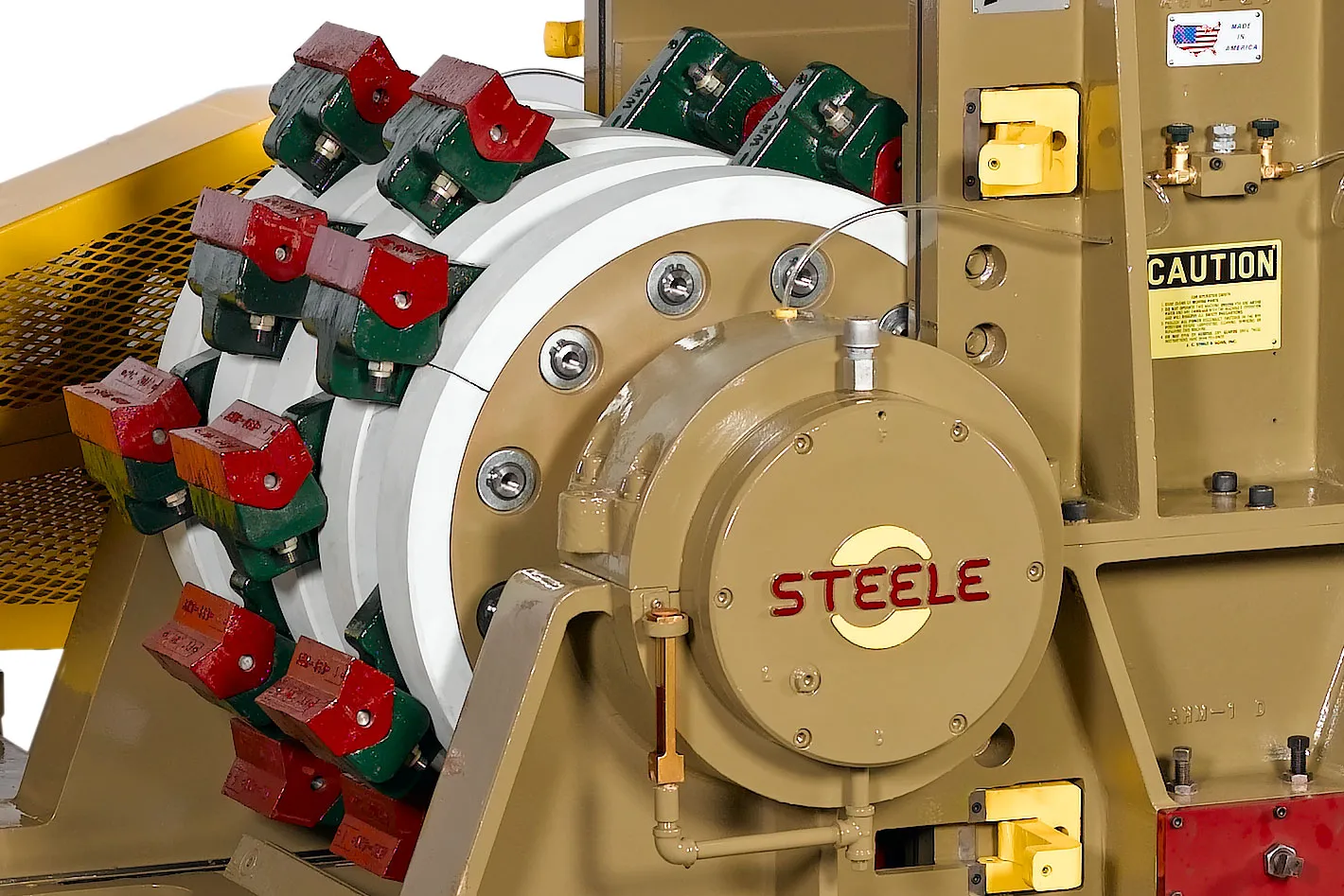

Massive twin balanced rotor assemblies sit in heavy-duty iron frames.
Discharge Conveyor
Better airborne dust control
Most hammermills produce vertical dust plumes and high-velocity particles at the discharge. Our optional discharge conveyor and chute system minimizes or eliminates dust and particle discharge while improving service access.
Adjustable deflectors with clod removal ensure proper material intake. The optional feed chute improves grinding efficiency, dust control and service life.
Discharge Chute
Flexibility for your process

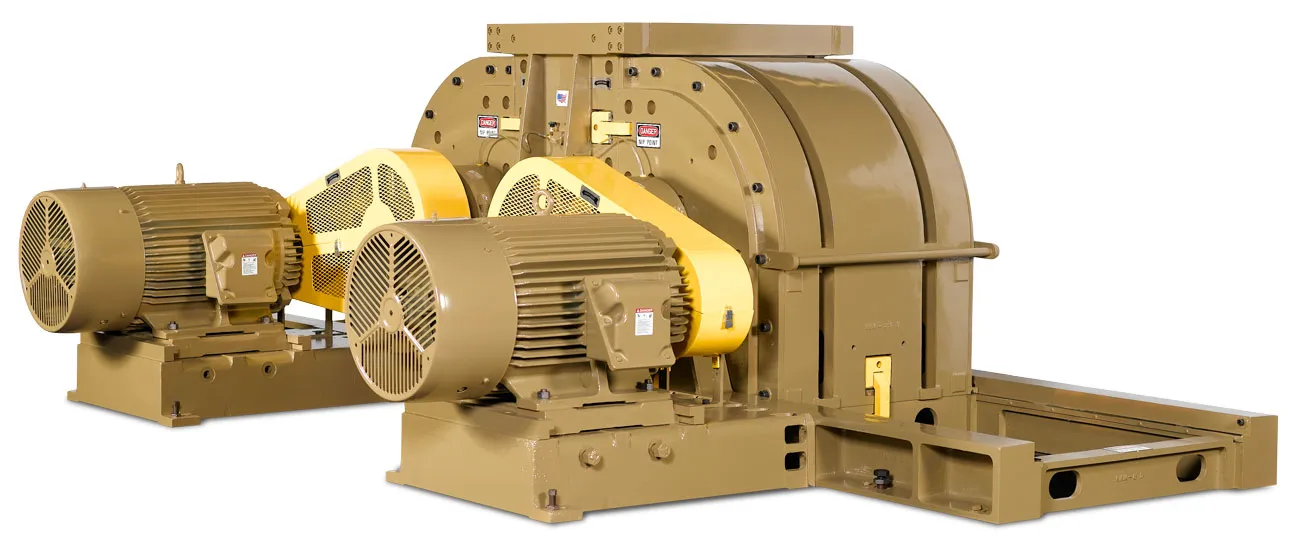

Like all Steele machines, the Double Rotor Hammermill combines robust construction with ready adaptability to your installation and processing requirements. Modifications for your materials and processes include individual breaker bar settings, higher tip speeds, special wear-resistant materials, motor and motor position modifications, and other accessories.

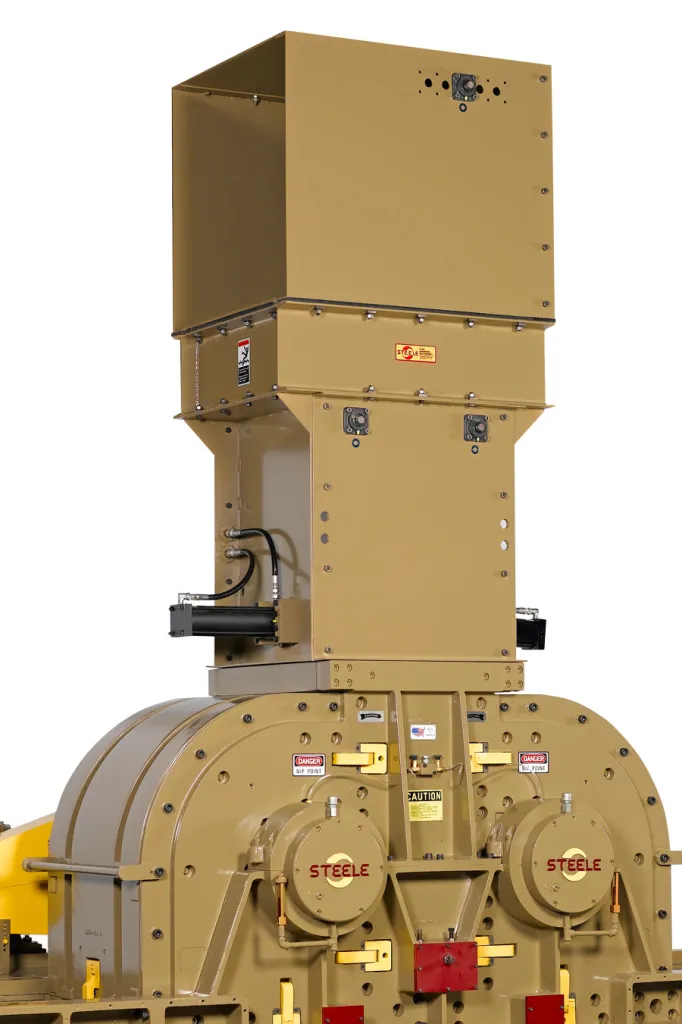

Shown with optional Feed Chute
Materials processing
- All shale grades
- Dry to medium-wet clays
- Soft stones and minerals
Input material size
- 4” or 100 mm is ideal
Throughput
- Up to 300 tons per hour (varies with material composition and moisture content, feed system capacity and selected components)
- Maximum screenable output ranges from minus-8 mesh producing 100 tons per hour to minus-14 mesh producing 30 tons per hour
Industry Applications
- Grinding for heavy clay applications, including brick, block and tile
- Friable minerals with varying moisture content
