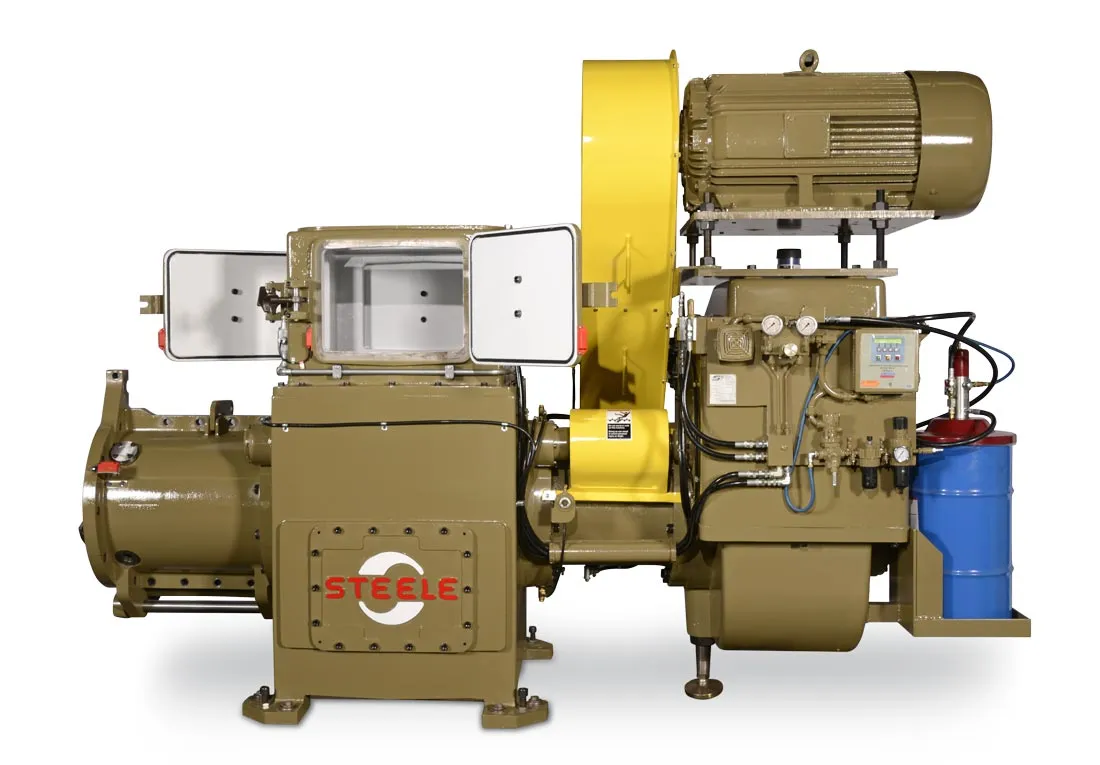

The Steele 45 Series Extruder
— Production rates up to 47 metric tons per hour
The Steele 45 Series is our mid-size stiff extruder and pug sealer combination, designed for shaping up to 47 metric tons per hour. This low-maintenance, high-efficiency system handles the same demanding stiff extrusion applications as our larger extruders, but at lower production volumes.
- Processes tough, plastic and sticky clays, and abrasive fines and dusts
- Trouble-free operation with minimal maintenance
- Fewer process steps for lower production costs
- Drive options for easier installation
- Accepts batch-mixed materials
Stiff extrusion in a mid-sized machine
The Steele 45 Pug Sealer is a high-shear mixer with rugged unibody construction that eliminates a frame and sills. A large open pug feeds the enclosed auger section and the sealing core, sealing die, shredder and auger sections are split for easy mounting and fast replacement.
Adjustable pitch knives resist abrasion and mix a wide range of materials. A renewable sealing auger cast with an innovative clamshell design simplifies access to sealing augers and the sealing section.
Our vacuum seal design minimizes leaks in the sealing auger case and eliminates the need for silicon to maintain vacuum levels.

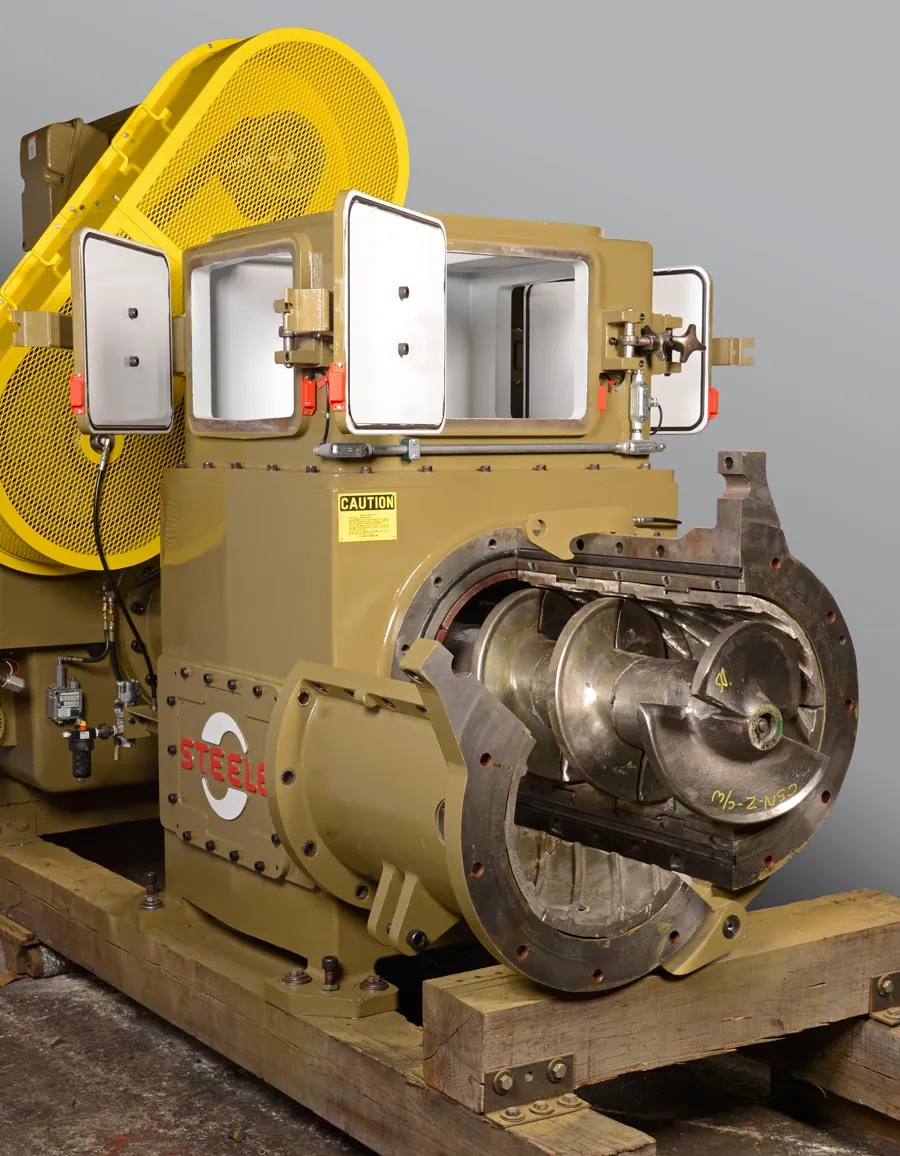

The 45 Extruder’s updated design has a large, open vacuum chamber, reducing the possibility of bridging and offering easier access for maintenance.

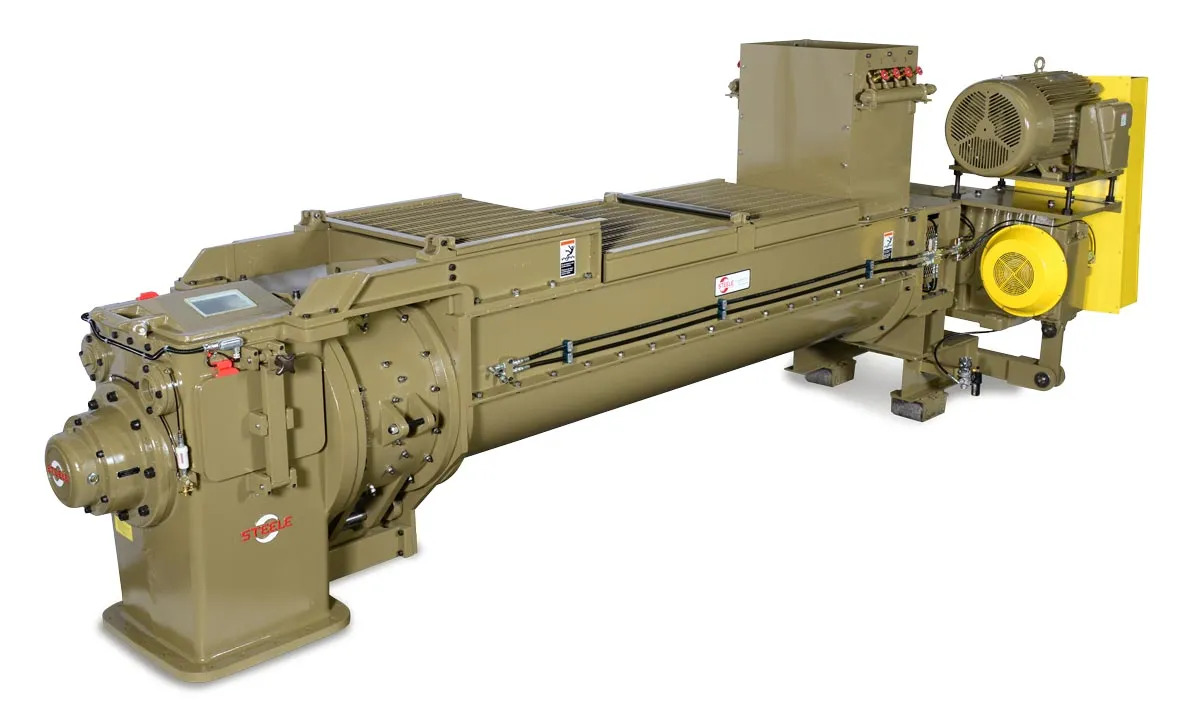

The Steele 45 Series Pug Sealer
Easy installation, operation and maintenance
The Steele 45 Series sets the industry standard for mid-sized production needs in demanding extrusion applications. Like all Steele machinery, the 45 Series comes with Steele’s global service and inventory commitment.

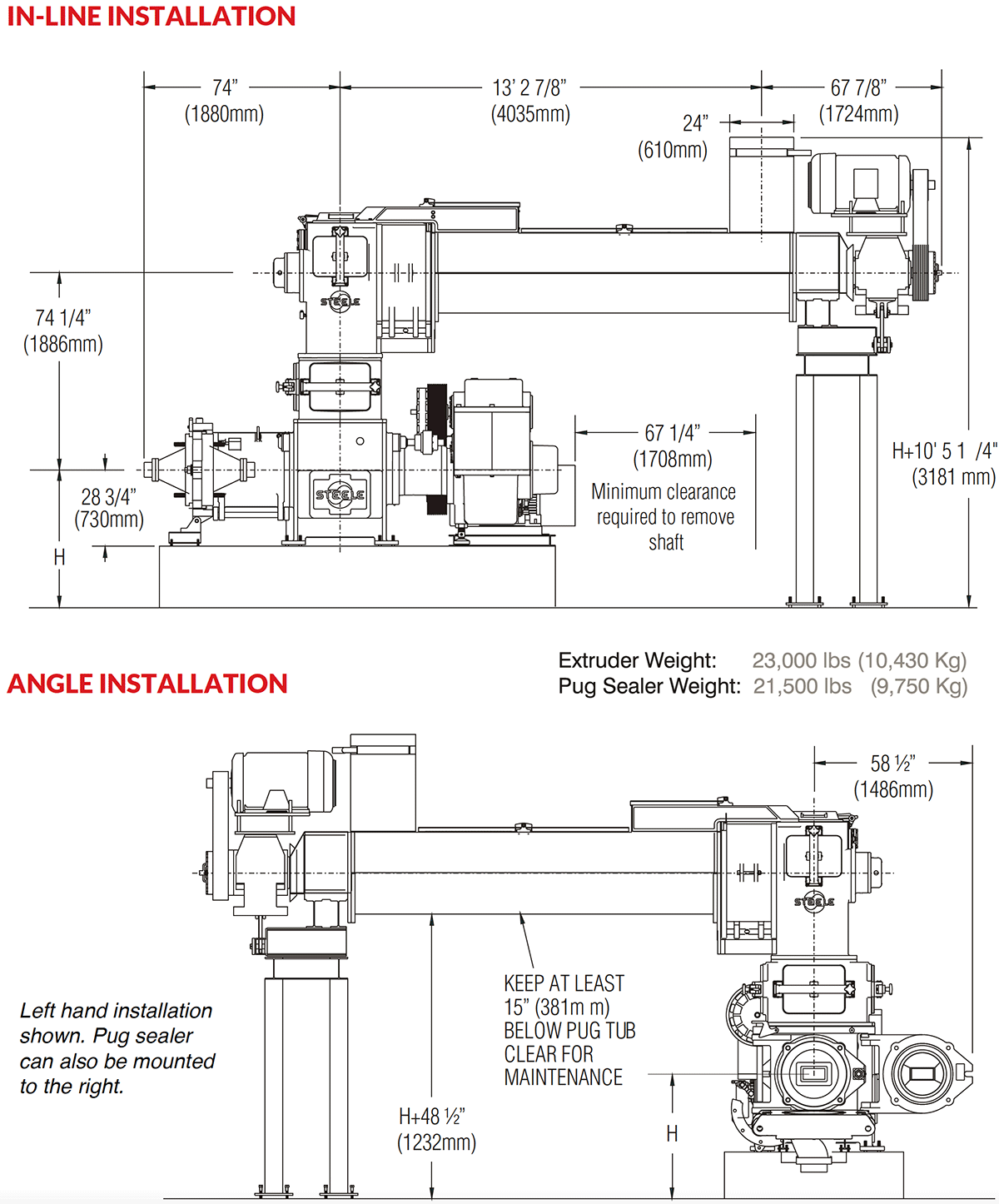

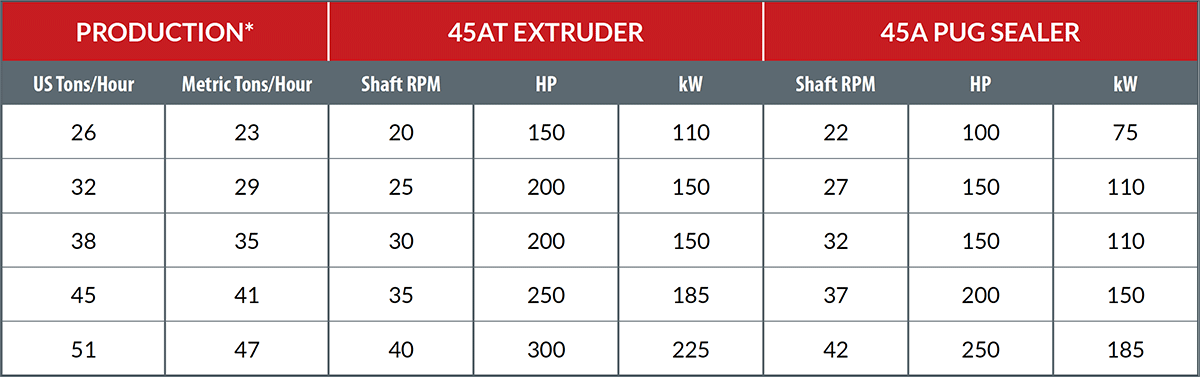

DIMENSIONS AND SPECIFICATIONS
*Production figures are average and will vary depending on many factors, including auger/liner selection and wear, auger/liner selection and wear, raw material, product extruded, and column stiffness.
Steele Extruders and Pug Sealers
3EX
Laboratory extruder
Development / rapid prototyping
HD-10
5.5 US Tons/hr
5 Metric Tons/hr
25 SERIES
22 US Tons/hr
20 Metric Tons/hr
45 SERIES
51 US Tons/hr
47 Metric Tons/hr
75 SERIES
59 US Tons/hr
54 Metric Tons/hr
90 SERIES
90 US Tons/hr
81 Metric Tons/hr
120 SERIES
120 US Tons/hr
109 Metric Tons/hr
Start Small And Then Go Big
When you’re ready to scale up production, we offer a complete range of material preparation and extrusion solutions. Steele also provides single-source plant and application engineering, plus global technical support, parts, and service.
For more information on the new 45 Series extruder, talk to your regional Steele sales or service representative, or contact us.
